Canvas elements sharing a colour chain so their colours stay in sync
PitchPrint has a feature called chain, which basically allows you to link items on the canvas to each other. Such that when one item is edited, all other items with the same chain ID gets the same text or image value. With this feature, you can have multiple items like all email elements, chained together so that your customer gets to edit their email only once and that value synchronised across the design canvas. The general chain implementation only affects text and image values. This feature is now possible with colors as well. We made this distinction so that you can chain elements with same color together and not have their text values synchronised. So How does it work? You will start by creating your design as usual, but then you will supply a chain value for the selected elements as shown below:

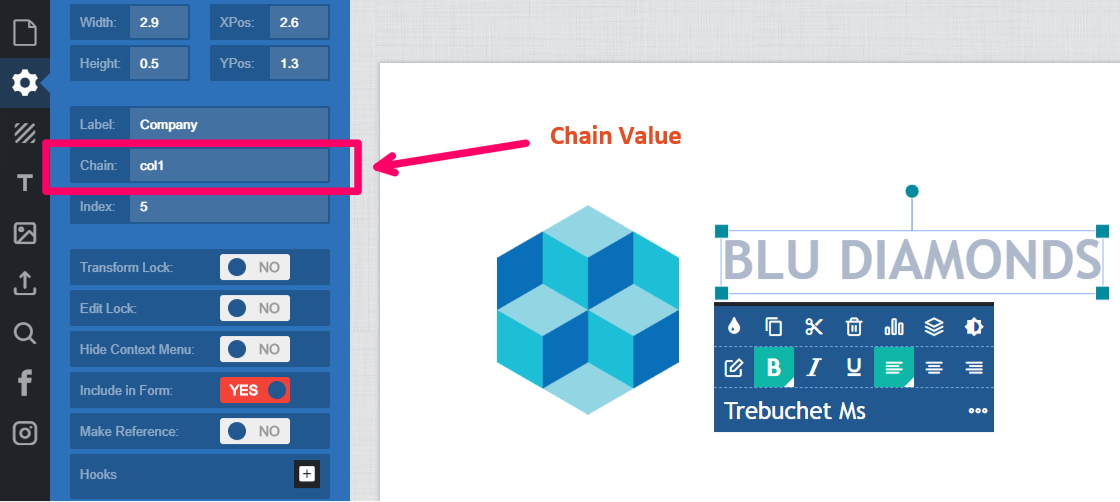

Item panel with a chain value entered for the selected element
What makes this different is the reserved list of values we have which are:
col1, col2, col3, col4, col5, col6, col7, col8, col9 and col10
So an element with any of the above values is deemed a color chain. Its text values will not be synchronized, only the color will. With this list, you can create up to chain groups with their colors linked. For example, to link two text item’s colors, simply assign the first one col1 and the second one the same value col1. That way, they are in the same color group and will be synchronized. You can create a different group with col2 and so on. Remember that chain values are case sensitive so make sure that the values are exactly the same.

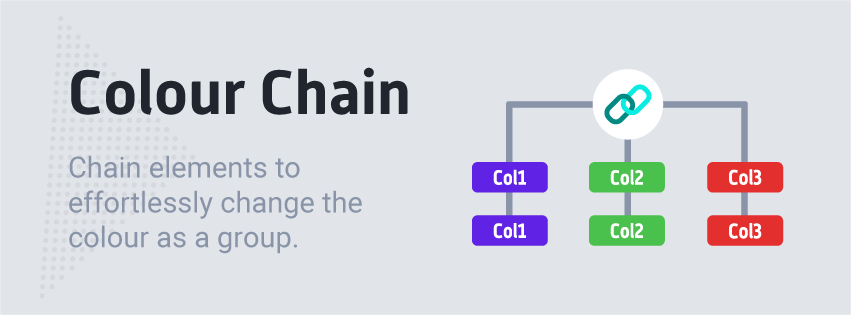

Colour Chain

Synchronise element colors across the canvas using the col1 to col10 chain values.

Item Chain

Link text items so editing one updates all others sharing the same chain ID.

Image Chain

Link clickable masks so they share the same uploaded image using numeral chain values.
